John Petre - Construction Photos

Electric Flap Control

Flap motor - shows the flap motor installation behind the rear seat bulkhead.

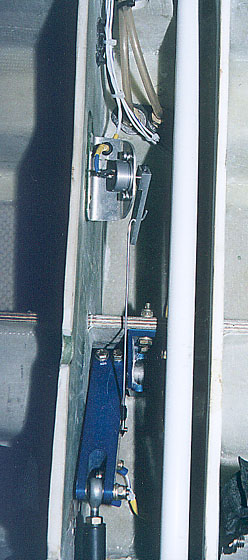

Flap position sensor - I have a system whereby I select the position of the flaps with a button. The corresponding light for that button will then light up when the flaps reach that position. At that point, the motor will stop, until the next position position is selected. The sensor/pot tells the flap electronics what the flap position is at any time. There is also a manual overide switch, in case the electronic flap sensor and automatic position selector runs away with itself. Also, because I have a lot more flap travel with the motor than one would normally have with the flap "handbrake", I have installed a safety/limit switch under the flap arm which will shut off the motor should I lose control of it.

Instrument Panel and Controls

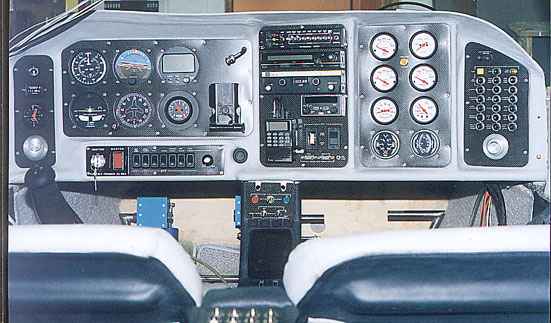

	Instrument panel - just a shot of my panel - it is in fact a Glasair panel which I have modified to fit the KIS.

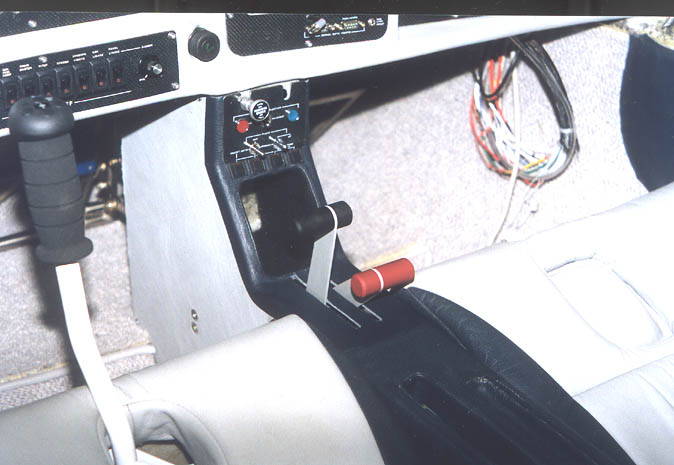

	Throttle quadrant - showing the throttle and mixture control and the electronic controls for the fuel selector valve and the flaps

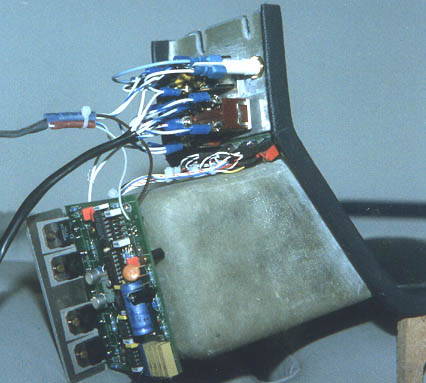

	Flap Controller - The controller hardware which is mounted on the back of the centre console cover.

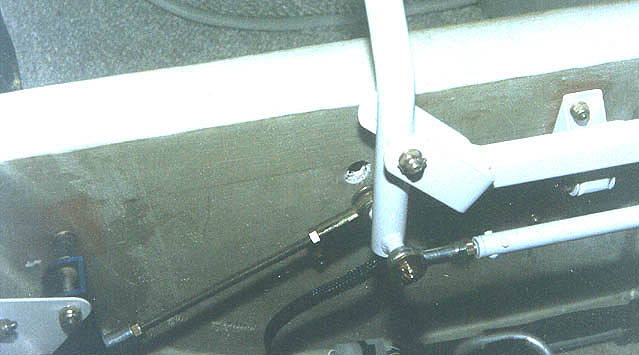

	Aileron Control - shows the new control stick cross linkage to replace the one supplied in the kit.

Rudder Pedals

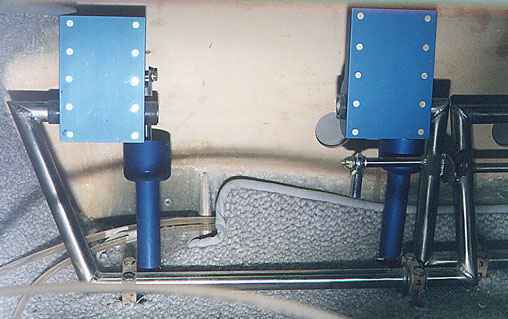

Rudder pedals - shows what I did to overcome the rudder pedal position problem that we are all experiencing. It also shows the new pedals I made which replace the ones supplied in the kit.

Engine Mount

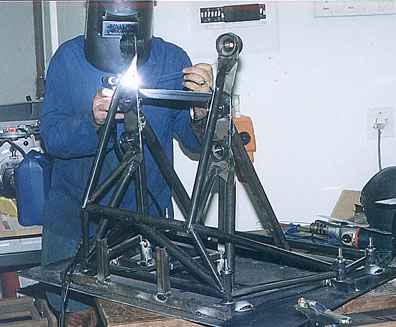

Welding - the welding of the engine mount which I have built for my Subaru SVX motor.
