OC Baker - TR-1 Construction Photos
OC Baker holding up his access panel that he described on kisbuilders
some time ago, that mounts from the inside, to use you insert diagonally,
then pull tight with the center screw (not shown), and fasten the other screws.
Makes for a neat installation
|Holding his motor mount on the firewall mockup. He will trial fit all firewall penetrations here before drilling on the real firewall. You can also see the "training" wheels that he has referred to on the landing gear.|

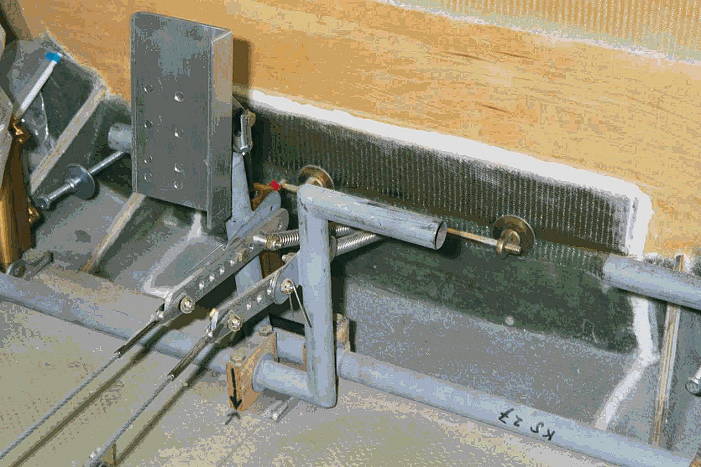

|Brake pedal modification for more ruggedness and leverage, note the
adjustment links fabricated out of Aluminum, also the spring retention rod
on the firewall.
|Fiberlass flanges with push-over clips for the retaining bolts for
a center console extension, allow some tolerance for misalignment when

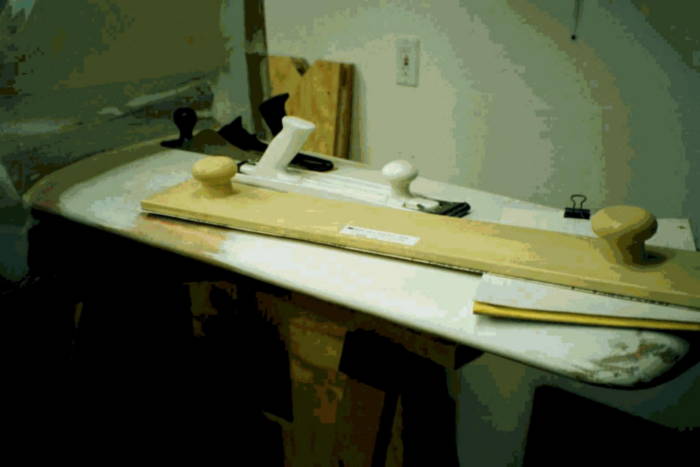

|Sanding tools for feathering the epoxy filler. The long one is a "marine
feather board". The "wood plane" has sandpaper on its sole.

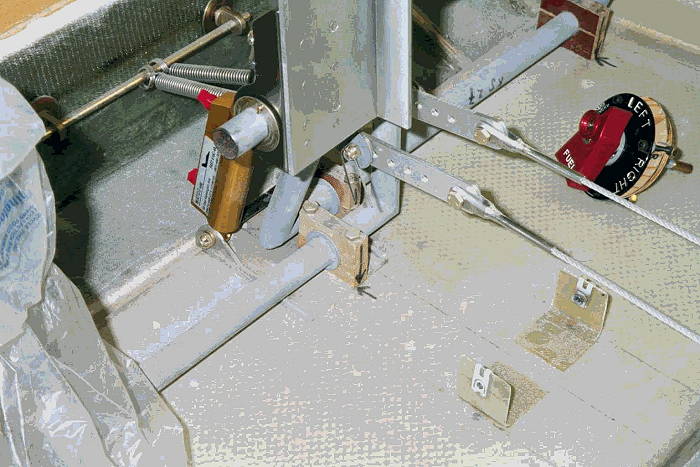

|Detail of cross-over in his plane. The cross-over rod is fabricated
with proper ends. I like this better than the aluminum rod supplied with

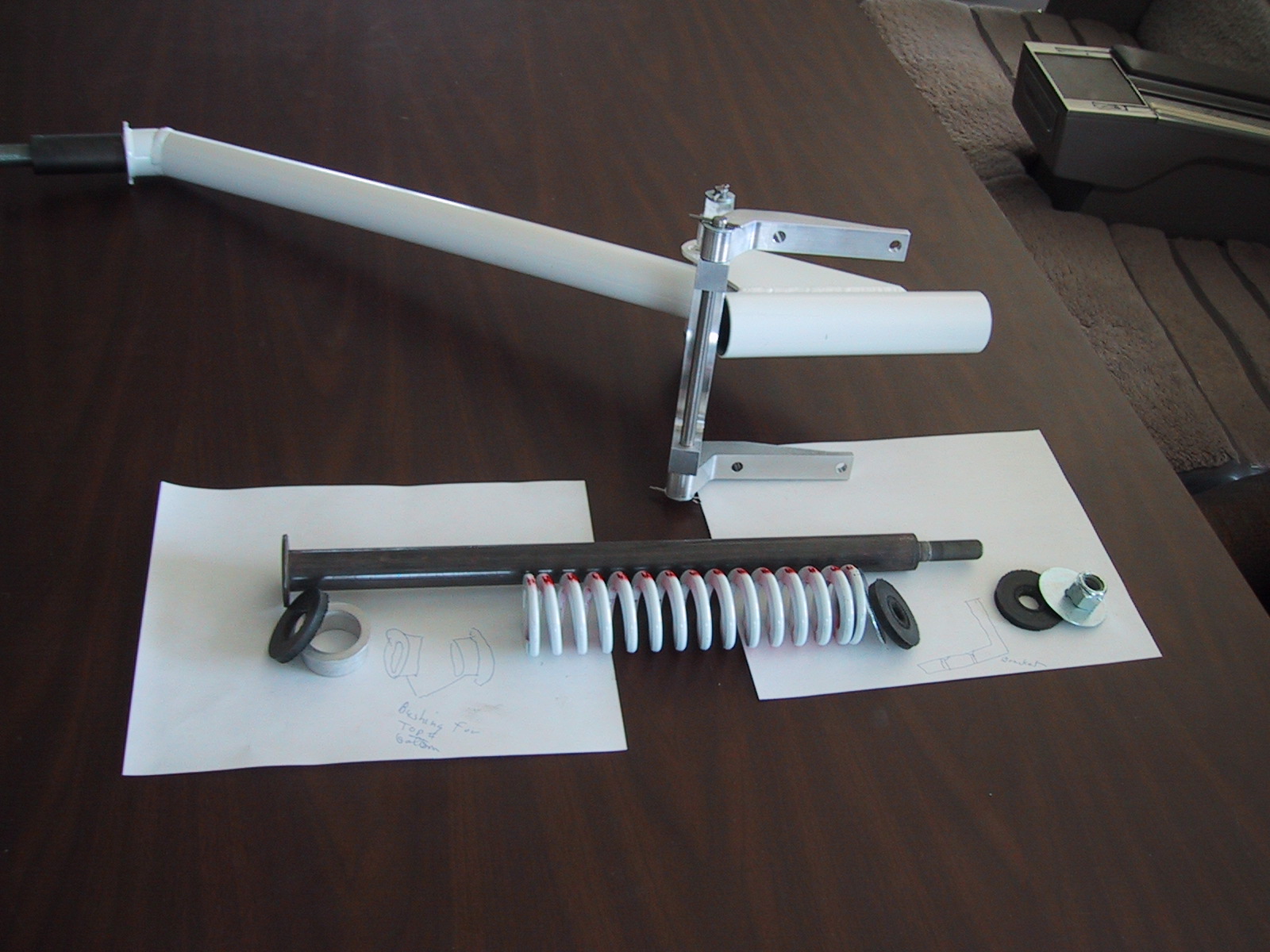

|Upgraded TR-1 Nose Gear Assembly|
