N247BR

Pre-Assembly Wing Install


Part 4 Wing Root Fairing

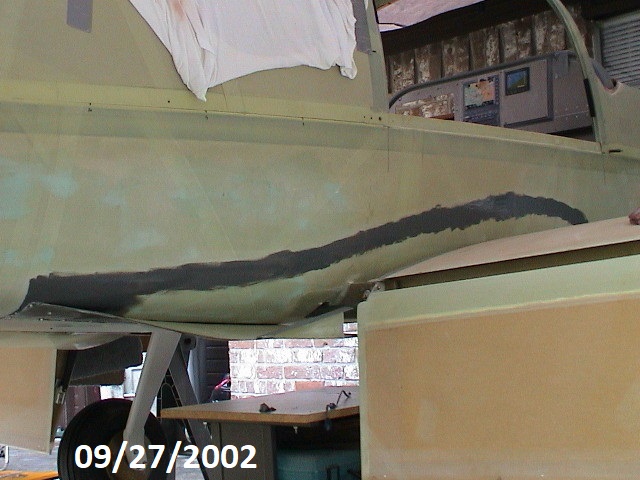

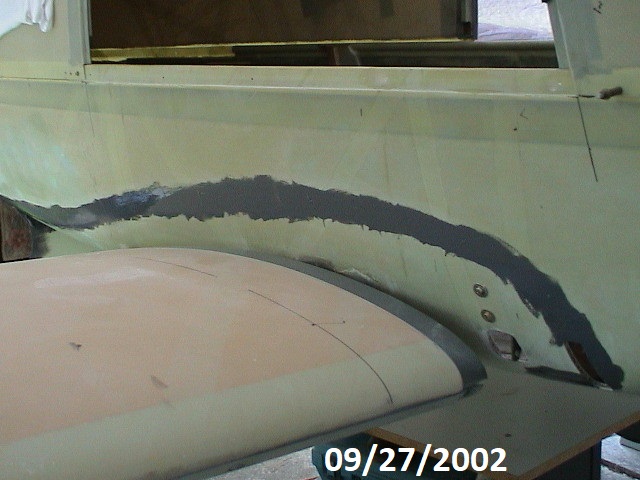

Pre-Assembly Preparation for bonding the wing fairings included prewetting the bond area on the fuselage.  Make sure to sand and clean the area befor bonding.
Pre-Assembly I put the lower fairing on first.

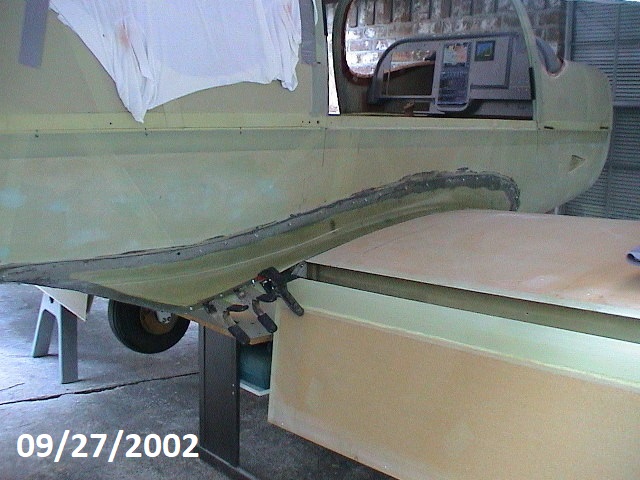

Pre-Assembly The fairing is bonded in place and screws positioned every few inches to clamp the fairing to the fuselage.  I made a big mistake with the screws and tightened them down too much.  This resulted in pulling the fairing too tight and resulted in low spots at every screw as well as pulling the whole fairing out of shape slightly.

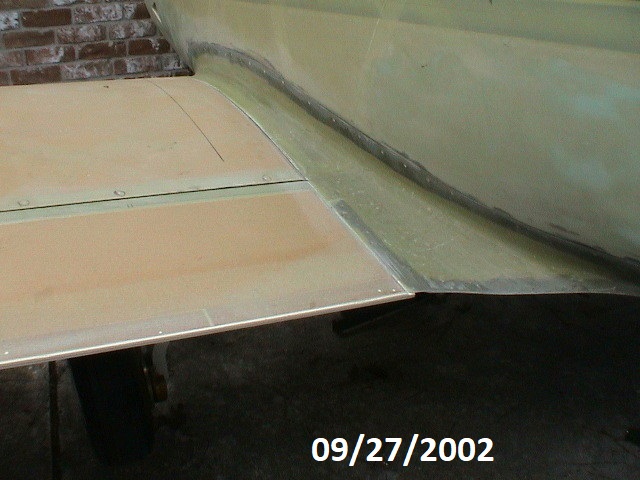

Pre-Assembly The big problem was not pulling the flaps into their full retracted position during cure.  It resulted in the trailing edge that fits over the flaps pulling down too far.  Raising the flaps to their retracted position caused the fairing to bow up and form a large gap at the point where the flap joins the wing.
Pre-Assembly After a great deal of additional work I was finally able to get the fairing to fit without a significant bow.

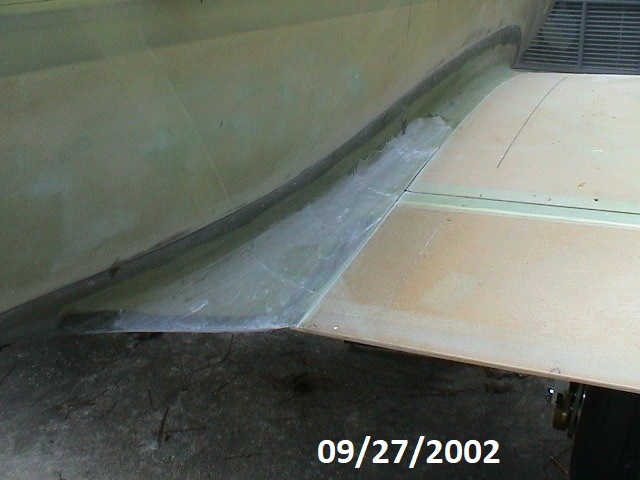

Pre-Assembly It took a great deal of sanding on the underside of the fairing where it overlaps the flap as well as sanding the end of the flap to form a joggle.  I also had to cut the fairing at the point where flap is mounted to the wing. Once I got a reasonably goot fit, I pulled the flap into the retracted position.  I then added some glass to the top of the fairing to stiffen it and cover the cut.

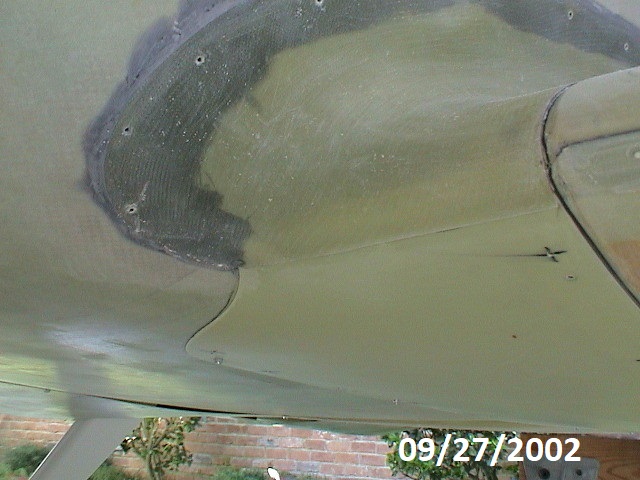

Pre-Assembly The lower wing root fairing slides under the upper wing root fairing at the leading edge.  Once the filler is added and sanded it should look pretty good.

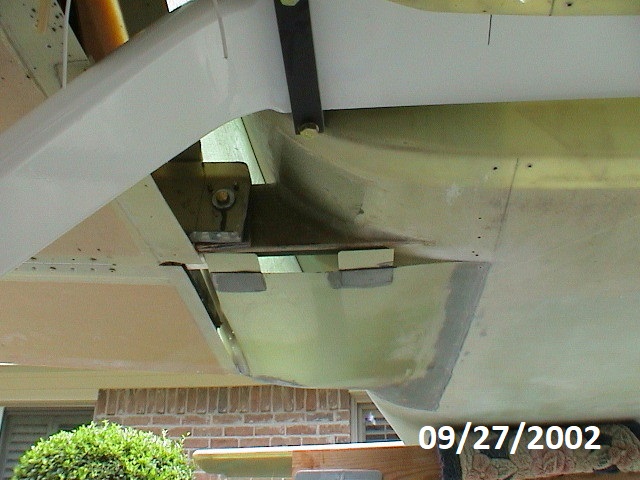

Pre-Assembly I placed overlap tabs on the rear lower fairing and on the lower wing root fairing.  These tabs will overlap to hold the to fairings together.  A couple of screws should keep everything in proper position.

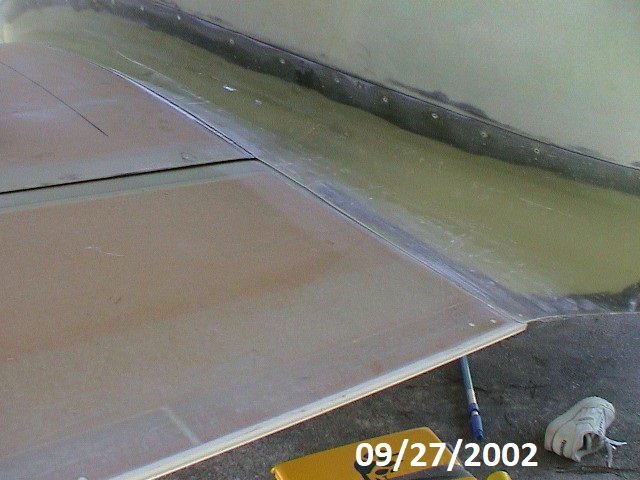

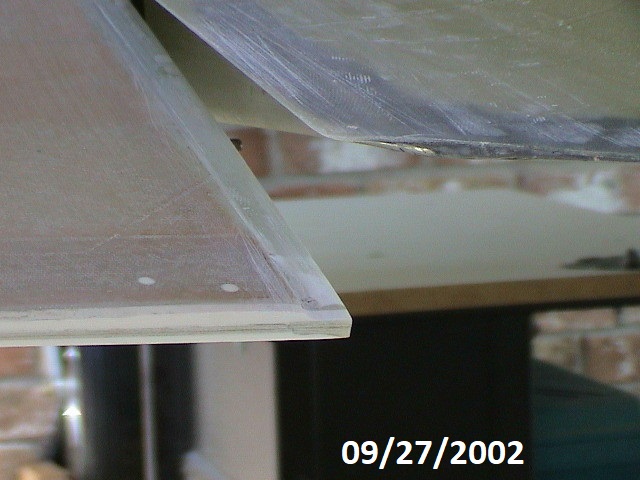

Pre-Assembly This shows the amount of sanding that had to be done to the flap end to form a small joggle for the fairing to fit over the flap without forcing the fairing to bow.  I am not thrilled with this solution but I believe it will come out looking nice.

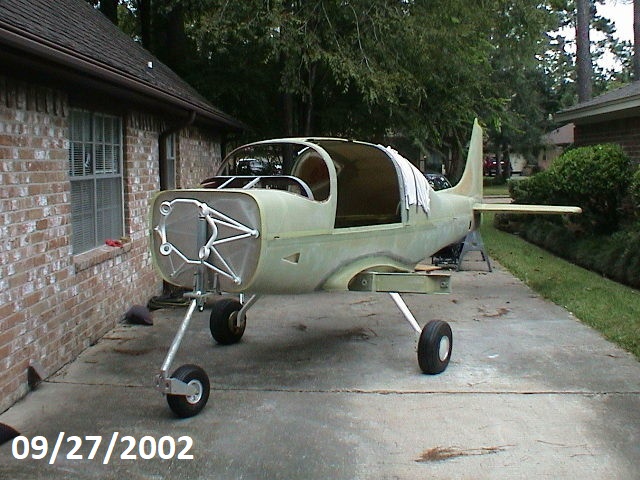

Pre-Assembly The preassembly is done and the wing root fairing is ready for fill and finish.
