Engine & Firewall

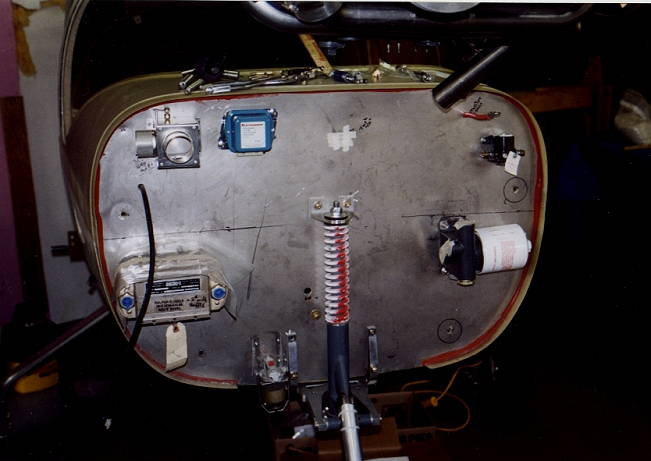

Firewall "preparations" prior to engine/mount install.

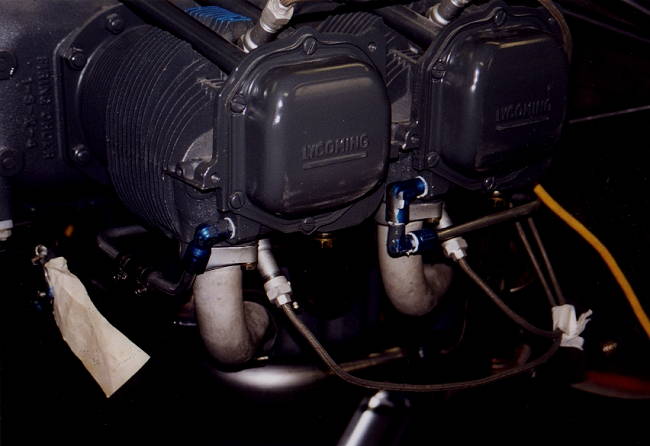

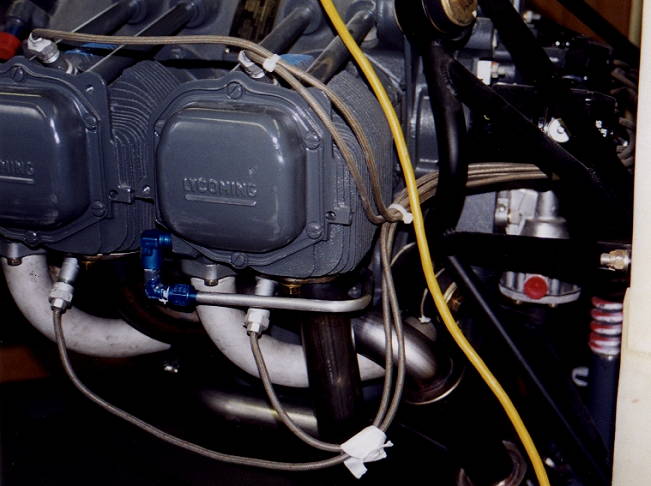

Rerouted rear left oil line.

Rerouted oil return lines - to avoid custom exhaust
system lines supplied by Tri-R. O-235L2c Lycoming

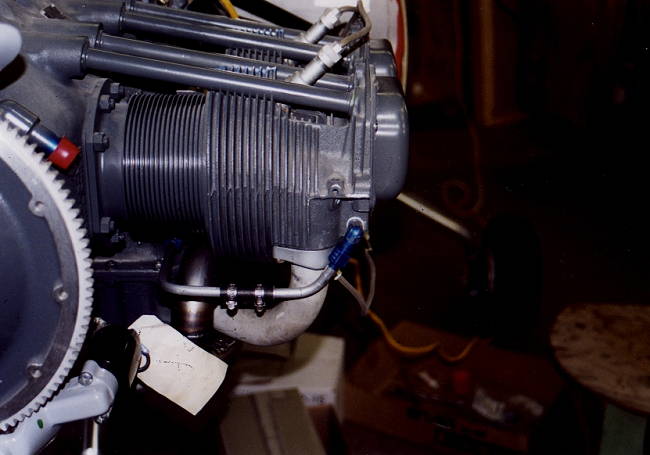

Rerouted front left oil line.

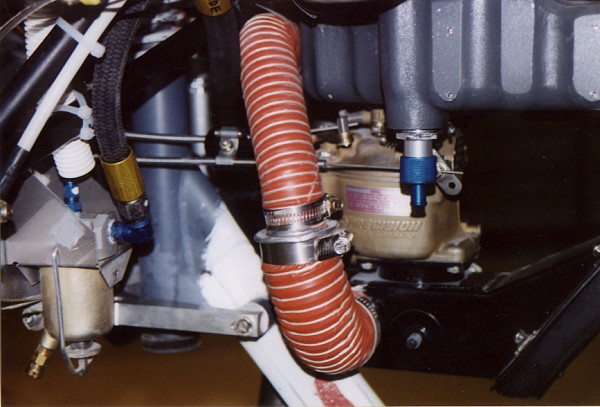

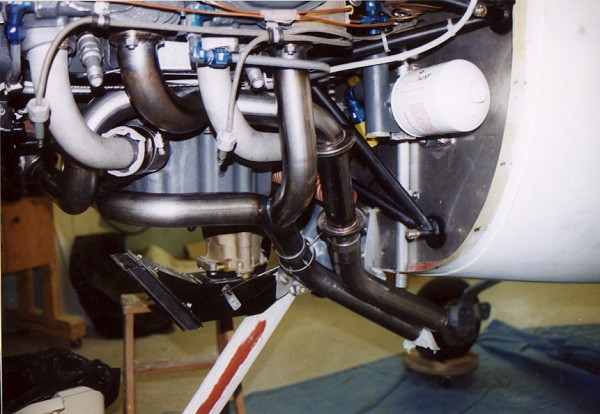

Gascolator, Carb, Warm Air & Carb/Air Filter. Exhaust and Oil Filter mounting.

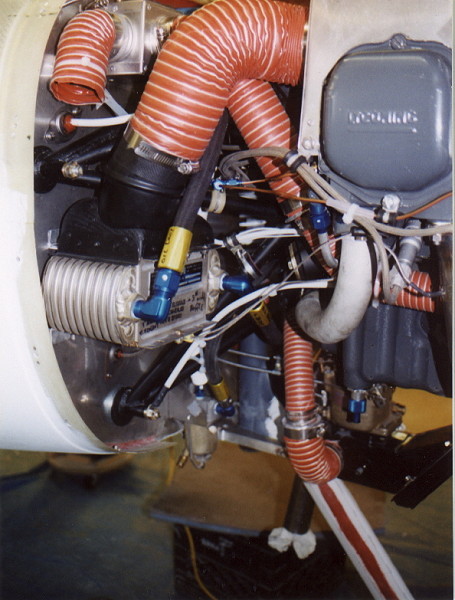

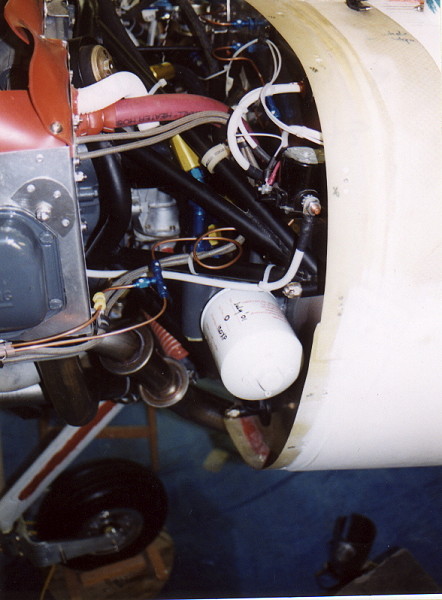

Oil Cooler mounted on firewall. Remote oil filter and wiring, hoses, etc.

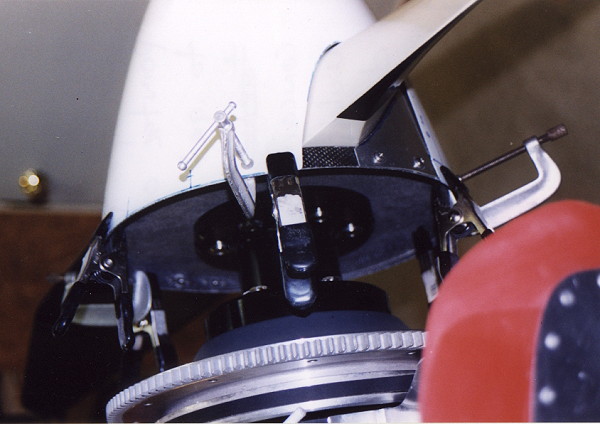

Clamps & A pointer on a stand to get the spinner turningconcentrically (No wobble!), before drilling for nut plates. VROOM, VROOM

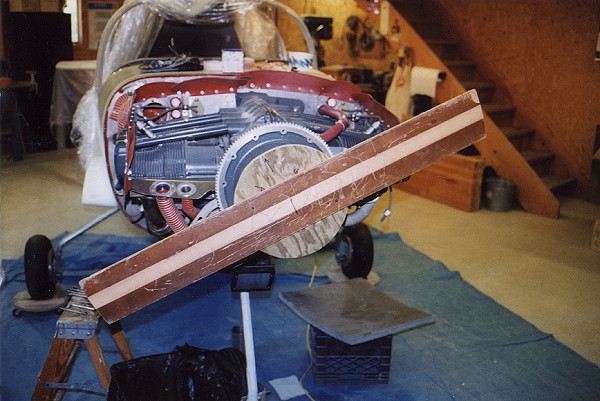

Something seems to be wrong with the pitch of the prop.
