FUSELAGE & DOORS

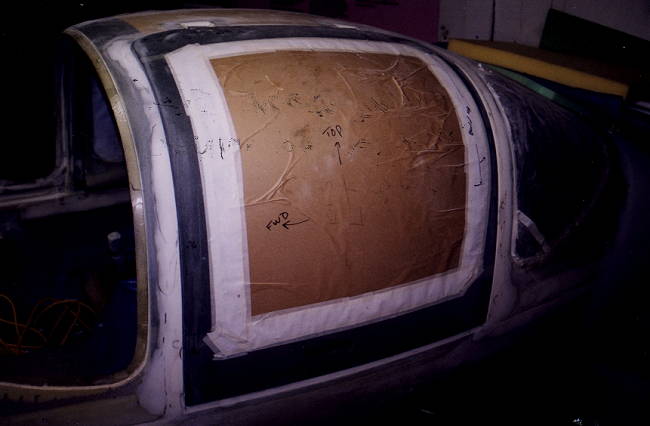

Installing window to inside door skin.

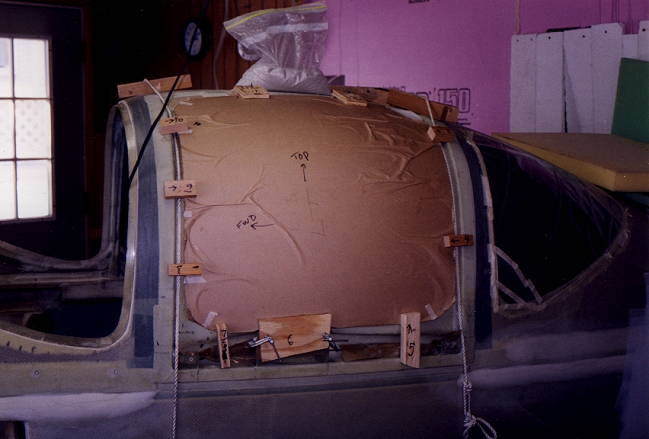

Door skin pulled down with ropes and blocks.

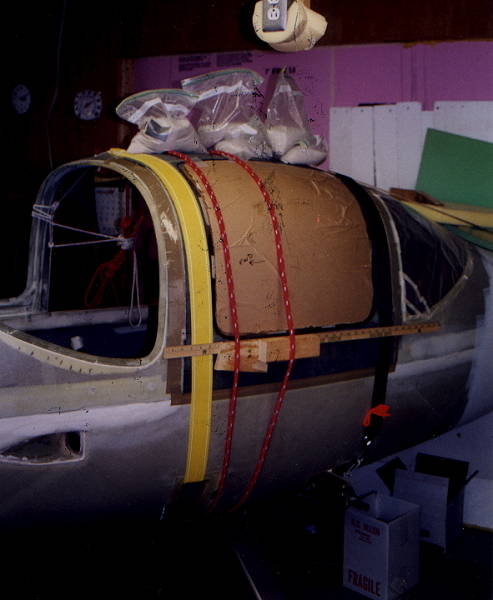

Outer door skin glued to inner door skin.
Micro fillter @ door edges to get flush surface.

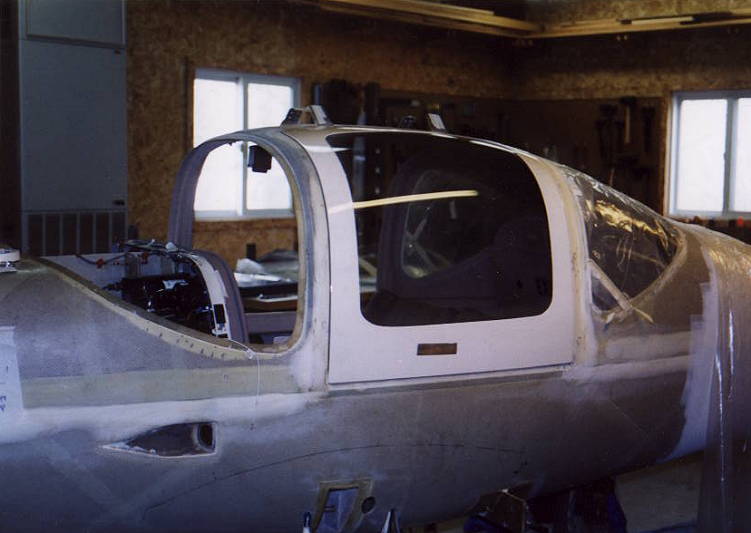

Couldn't get door completely flush with fuselage.

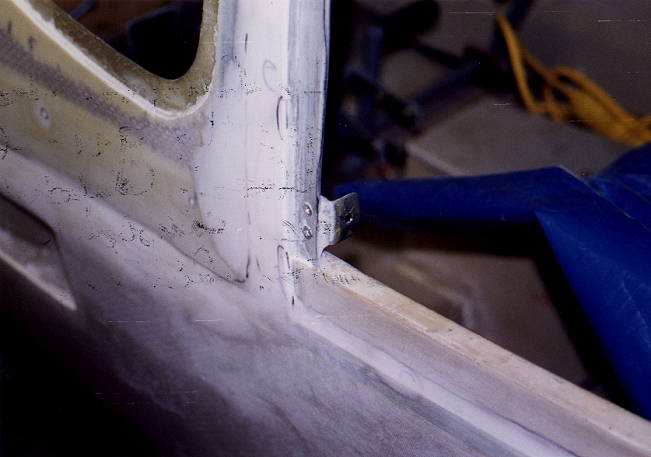

Door Latch Bracket

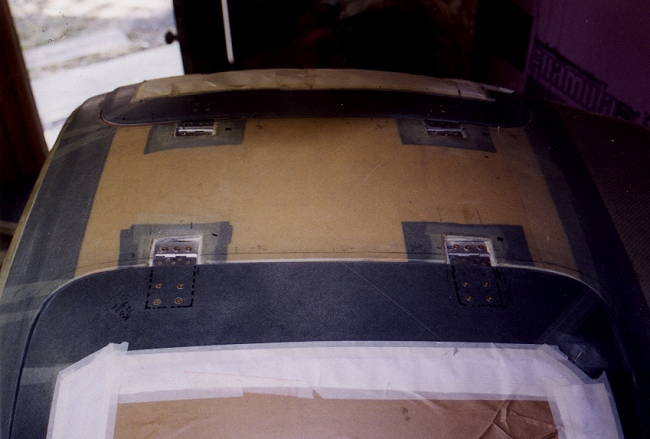

Doors hinged to fuselage.

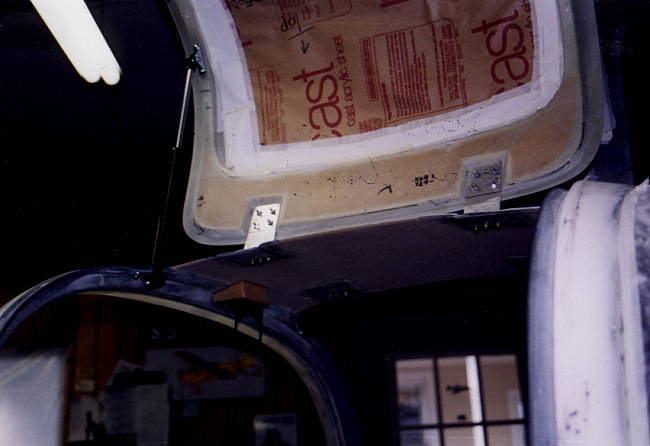

Gas strut installed.

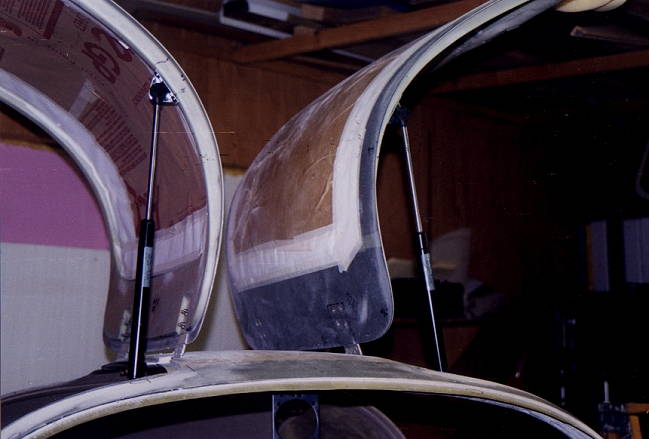

Two hinged doors that WORK.
(Doors are a pain to make!)

Measuring gap under door for seals.  Too bad
the gap isn't uniform!
