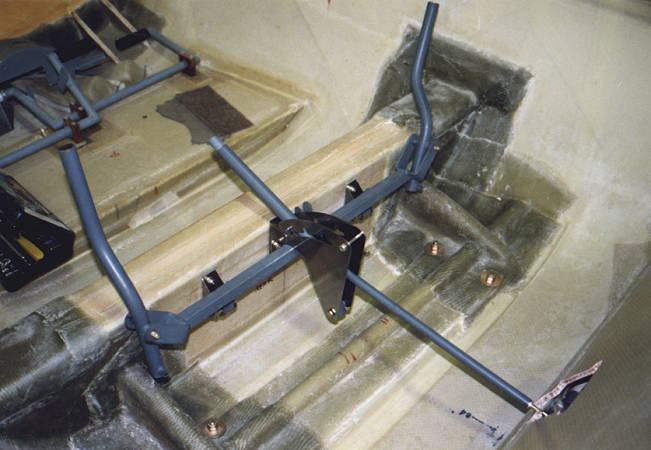

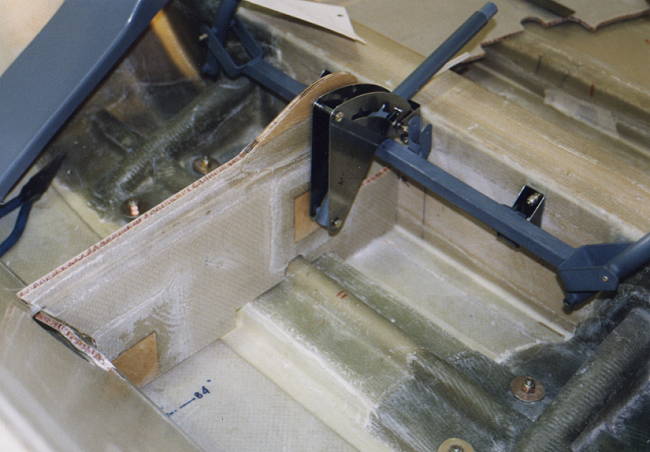

The following group of photos shows the manual trim
tab controls, the cable run to the elevator and trim
tab connection. The two photos of the cable show
the amount of cable deflection required for the full
movement of the controls.

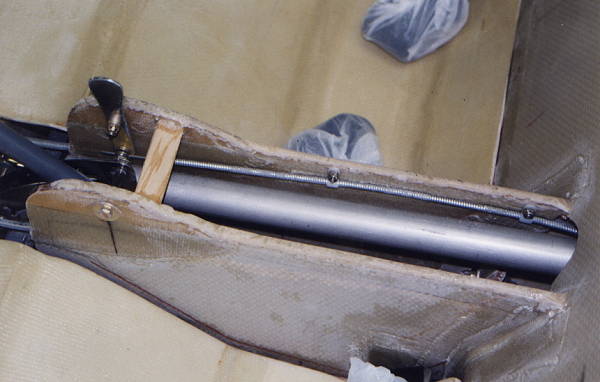

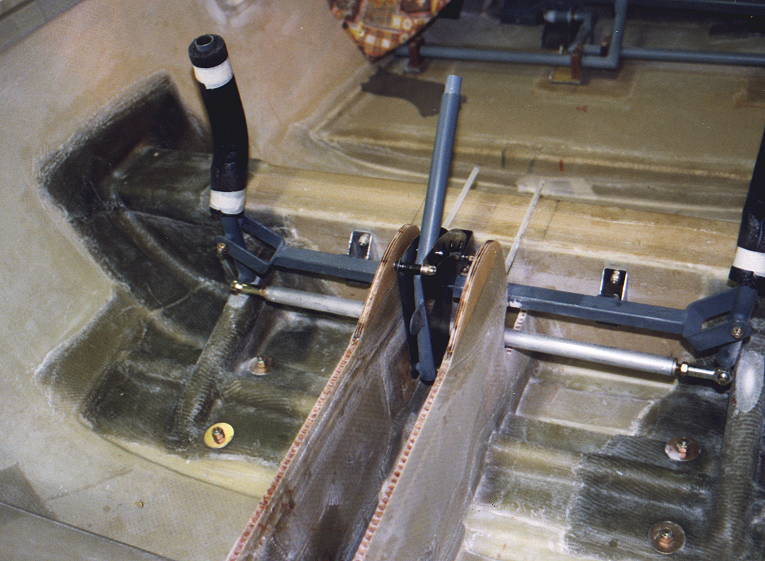

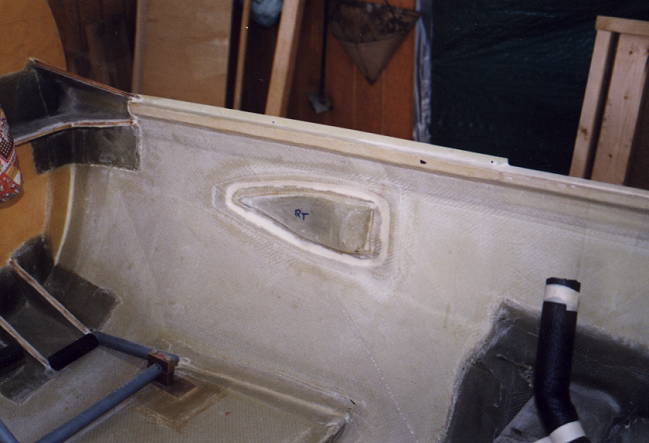

Manual trim control in console.

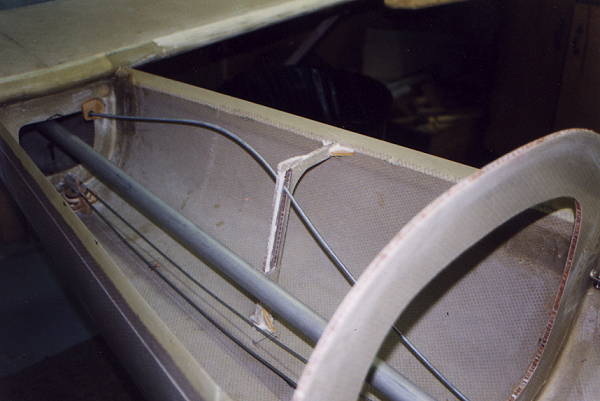

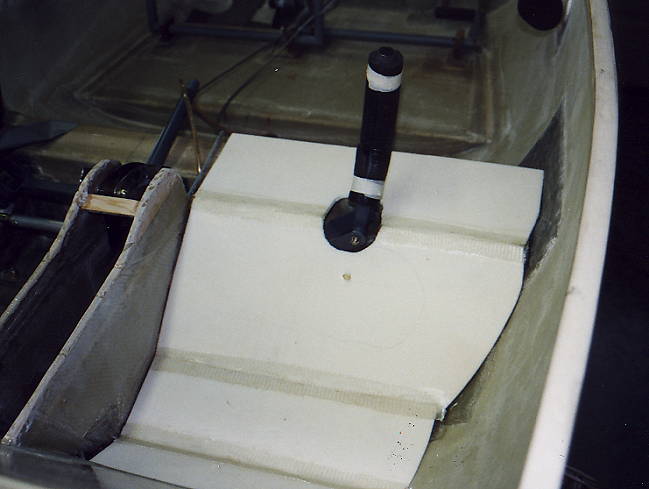

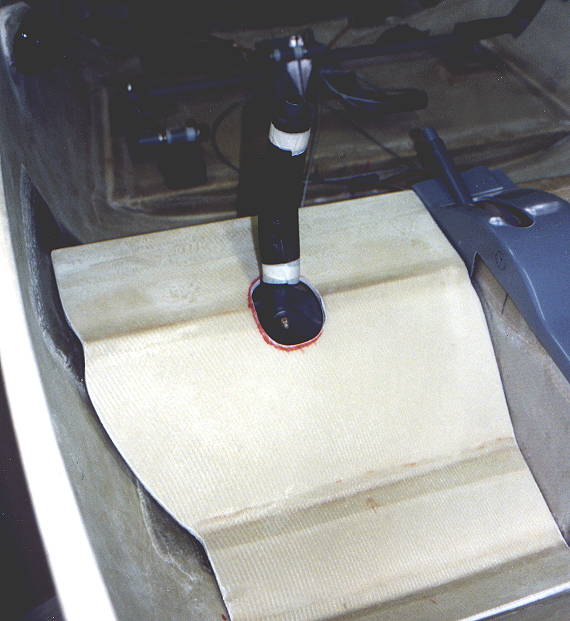

Trim Cable - Note movement in this picture and the
next with elevator movement.

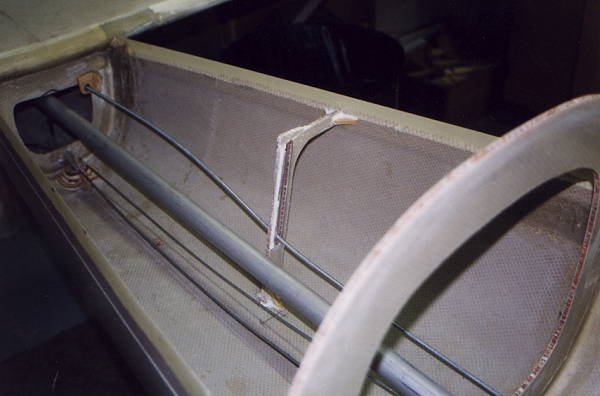

Trim Cable - 5" up/down of Bowden Cable with full
elev. travel. (30 deg up 20 down) Slot holds cable
from interfering with elevator control rod.

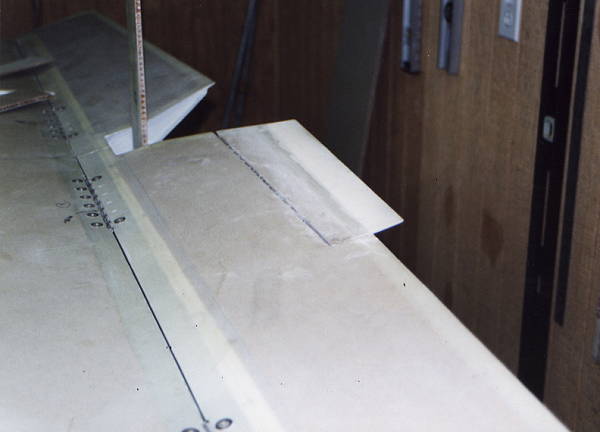

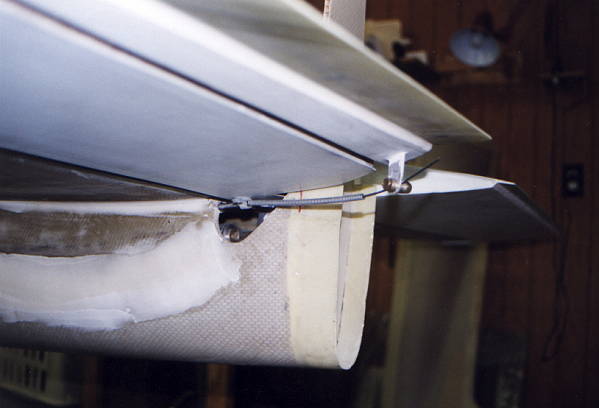

Trim cable connection to trim tab.

Extended Trim Tab - Will wait for test flights to
determine if elevator needs extension.
