Building a KIS Cruiser

Fuselage Construction - Control Stops


Bill Schertz, April, 2001

More ramblings on construction

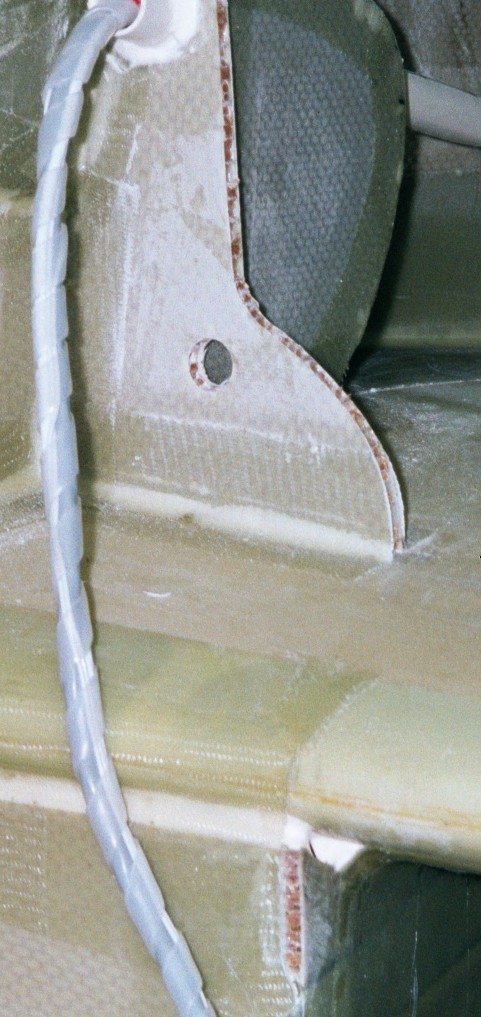

This is my strobe power supply leads for tail strobe, and the electrical leads for the tail light, and the leads for the electrical trim being fed into the conduit to the rear of the plane. They are wrapped by a spiral of poly tubing cut on a spiral, you can then wrap it around the wires and it tries to return to the original size, clamping the wires together. Since the picture was taken, I have added an intermediate clamp to the wire bundle to tie it into the horiz. Stab at the recommendation of my technical counselor.

 Control Stops

Control Stops

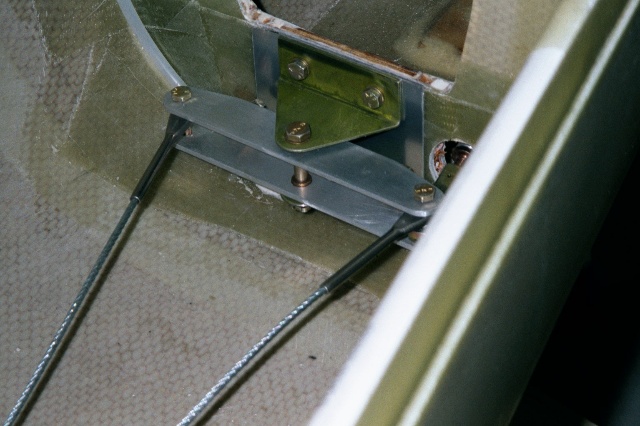

Following the lead of Ray Clegg, I built in adjustable control stops at the rear rudder idler. In this photo you can see an aluminum stop plate on the bulkhead. It protects the fiberglass of the bulkhead from the bolt heads shown below.

Control Stops, cont’d

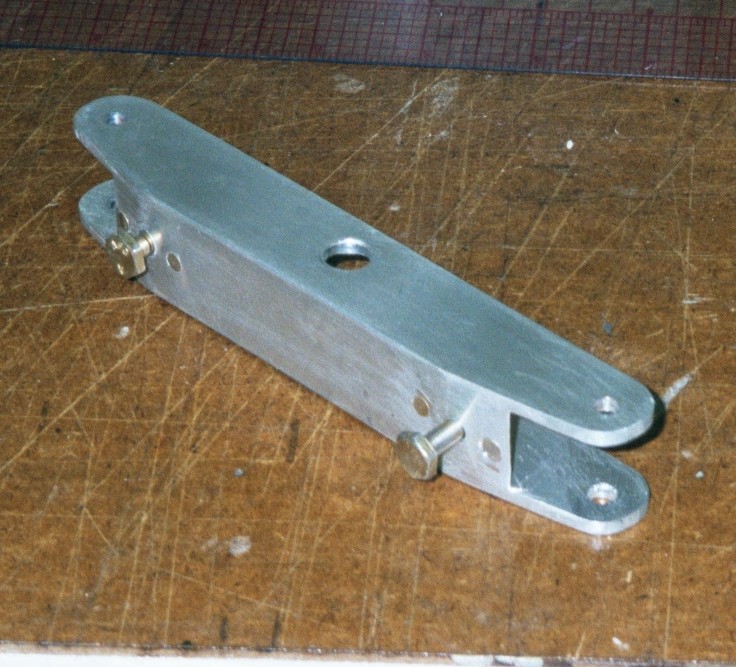

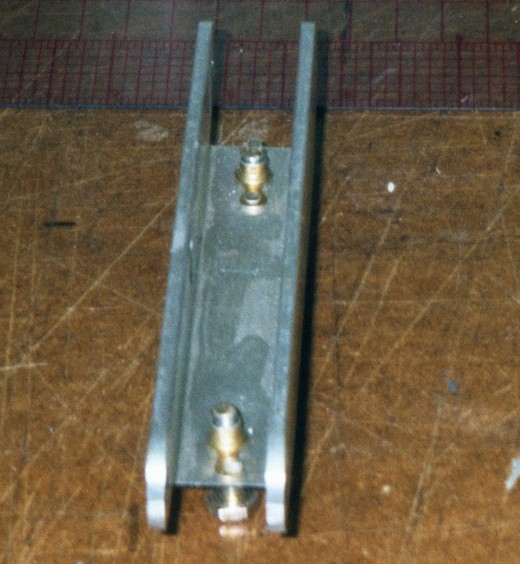

Here you can see the nut plates that were riveted onto the inside of the rudder idler, and the bolts than then stick out the back side. These make contact with the aluminum plate when full travel is reached. Travel is adjusted by turning the bolt with a wrench. Adjusting could be a problem of getting access, so I made another access door. (see below)

Access door

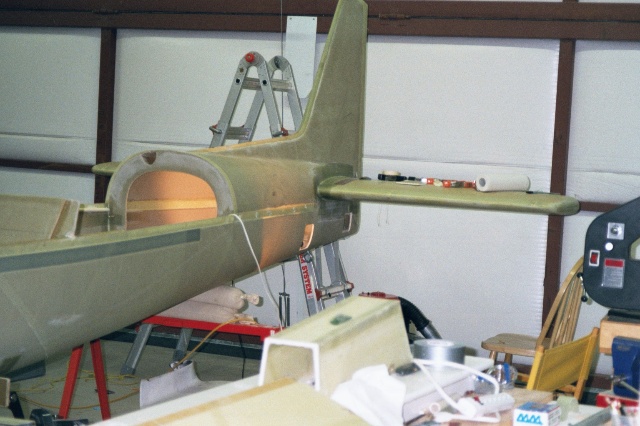

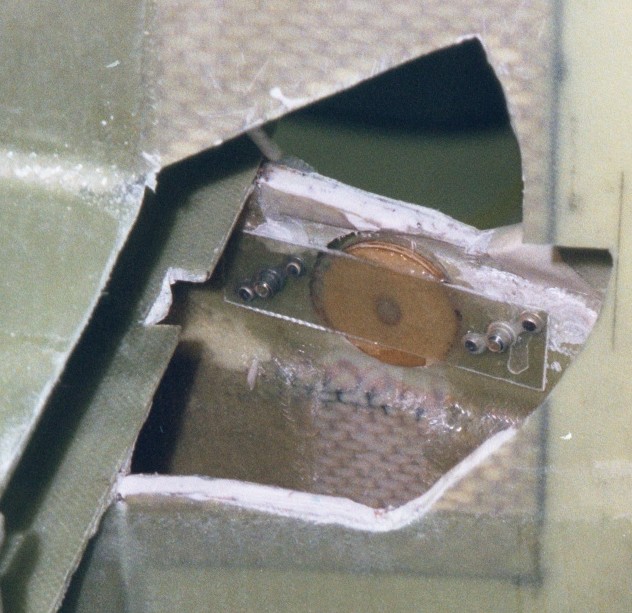

Here you can see the access hatch just forward of the Hz stab, to allow inspection and servicing of the 180 bulkhead rudder idler and attachments. I installed this door after talking to Bob Reed (he has one also) about the difficulty of us older folks getting back there.

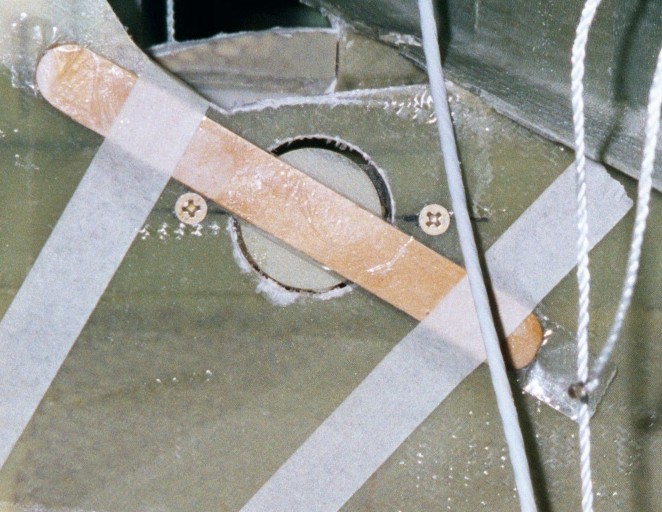

I cannot seem to get away from access hatches. Remember the hole that was drilled in the right hand side to allow access to the elevator horn bolt? I converted the drilled out piece of material into a small removable hatch to seal that off when not accessing the elevator bolt. The tongue depressor is temporary, just to hold the plug level with the surface. The two screws and nutplates hold the cover in place when done. Still to do – fill the excess gap with micro and smooth it.
