Alfred Rosa - TR-4 Builder

(Click on any image for full size view.)

Al Rosa has modified the inboard portion of his wings by cutting out a section of the wing flaps and
attaching it to the wing with 1/2 inch plywood ribs to provide a solid wing walk area that will allow a
step up to the wing without damage to the wing flaps.  Great idea!

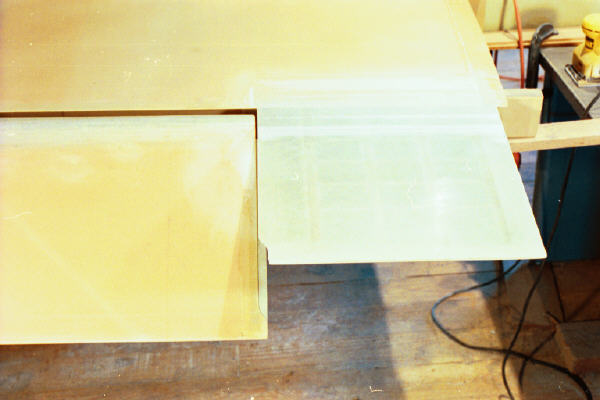

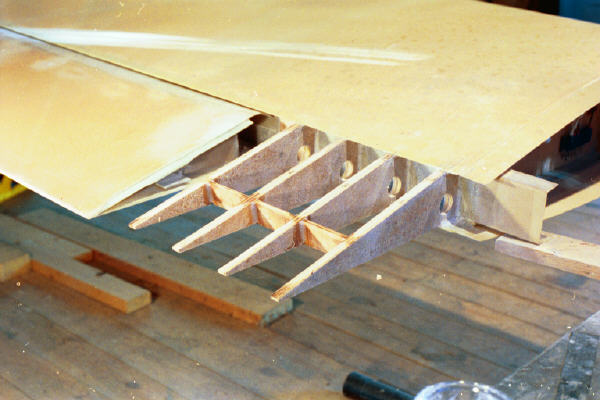

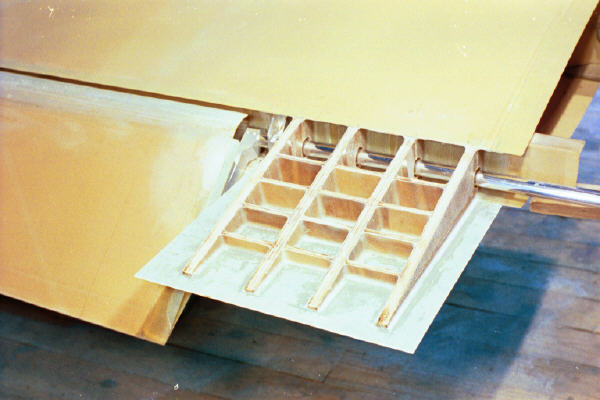

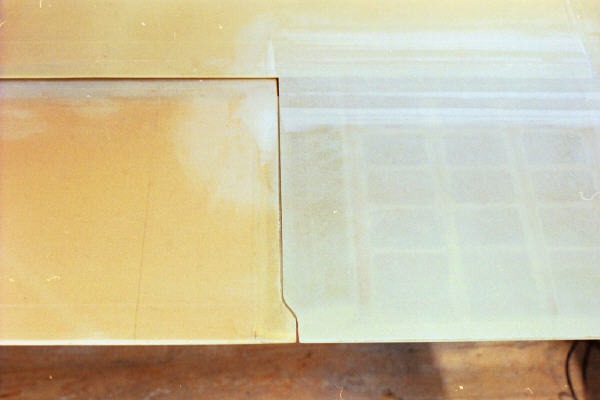

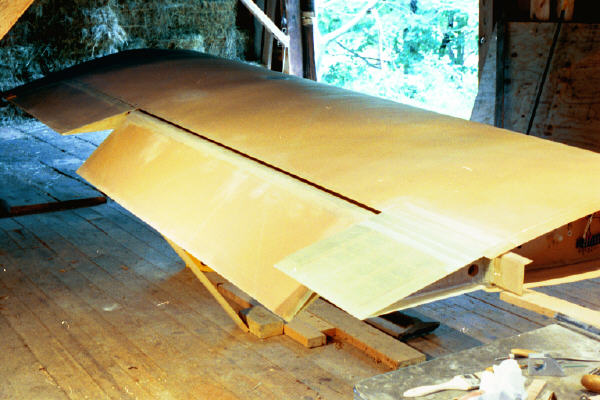

	TopLeft - F 1/2" plywood ribs and one row of 1/4" bracing in place. Note the 1 1/4" holes for torque tube. Top - Ribs and all bracing in place and glassed for strength and proofing.  Bottom 5-ply pre lam skin bonded Torque tube, bearing hanger and actuator arm in place. Left - Top skin of 8-ply pre lam bonded and glassed to wing and ribs.  Note recessed flange on flap that mates with wing walk. Left Bottom- Flap and wing walk mated.  Flange prevents over raising the flap. Bottom - Finished rear wing walk extension with flap at about 30'.  Flap was shortened to 75" to allow a 16" wing walk.  My hangar is a big old barn that I share with hay bales and bats.
